MAGMA PRIME TOUR
Артикул: 1412000019

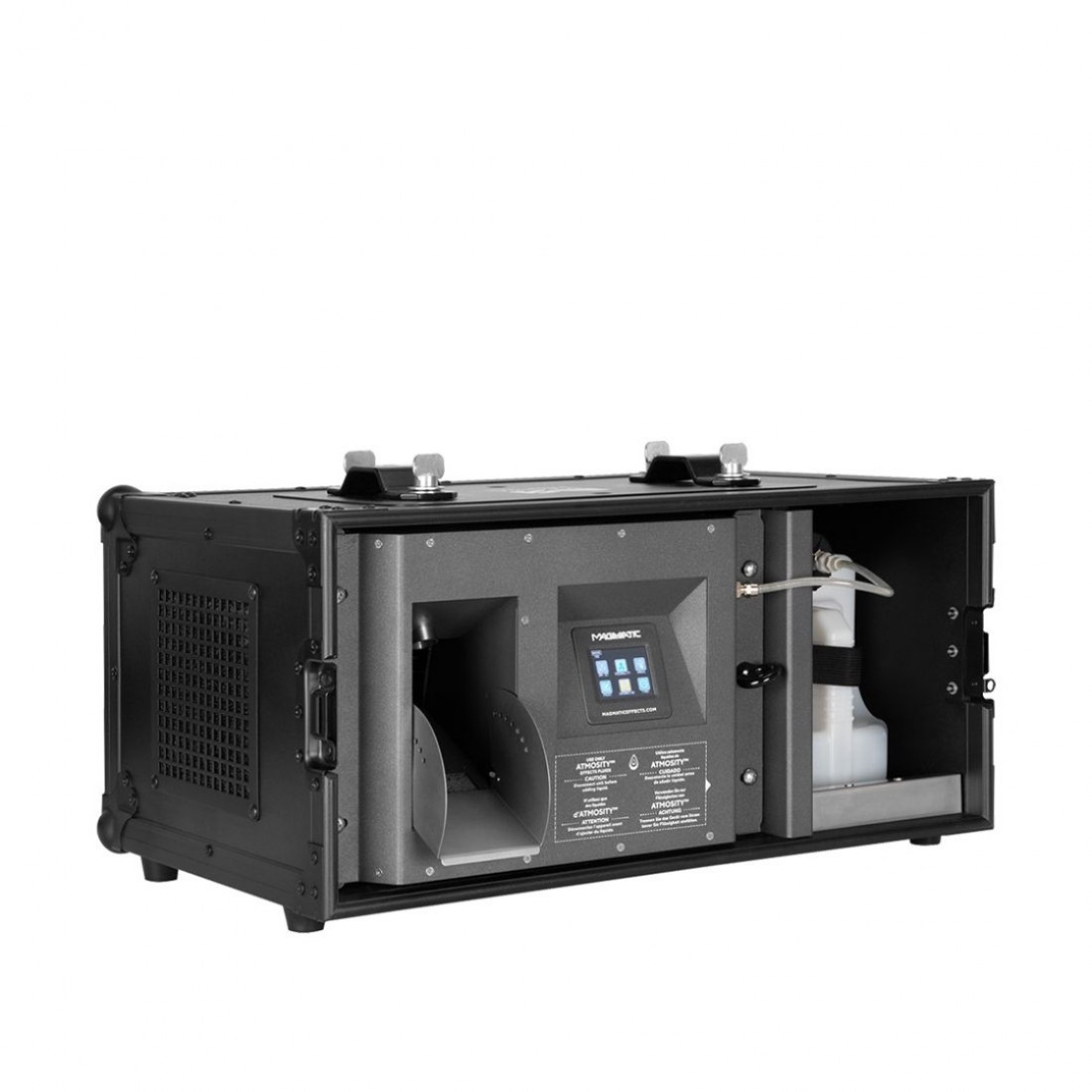

The Magma Prime Tour™ water-based fazer delivers a high-volume, dry haze effect with efficient fluid consumption, thanks to its advanced technology.

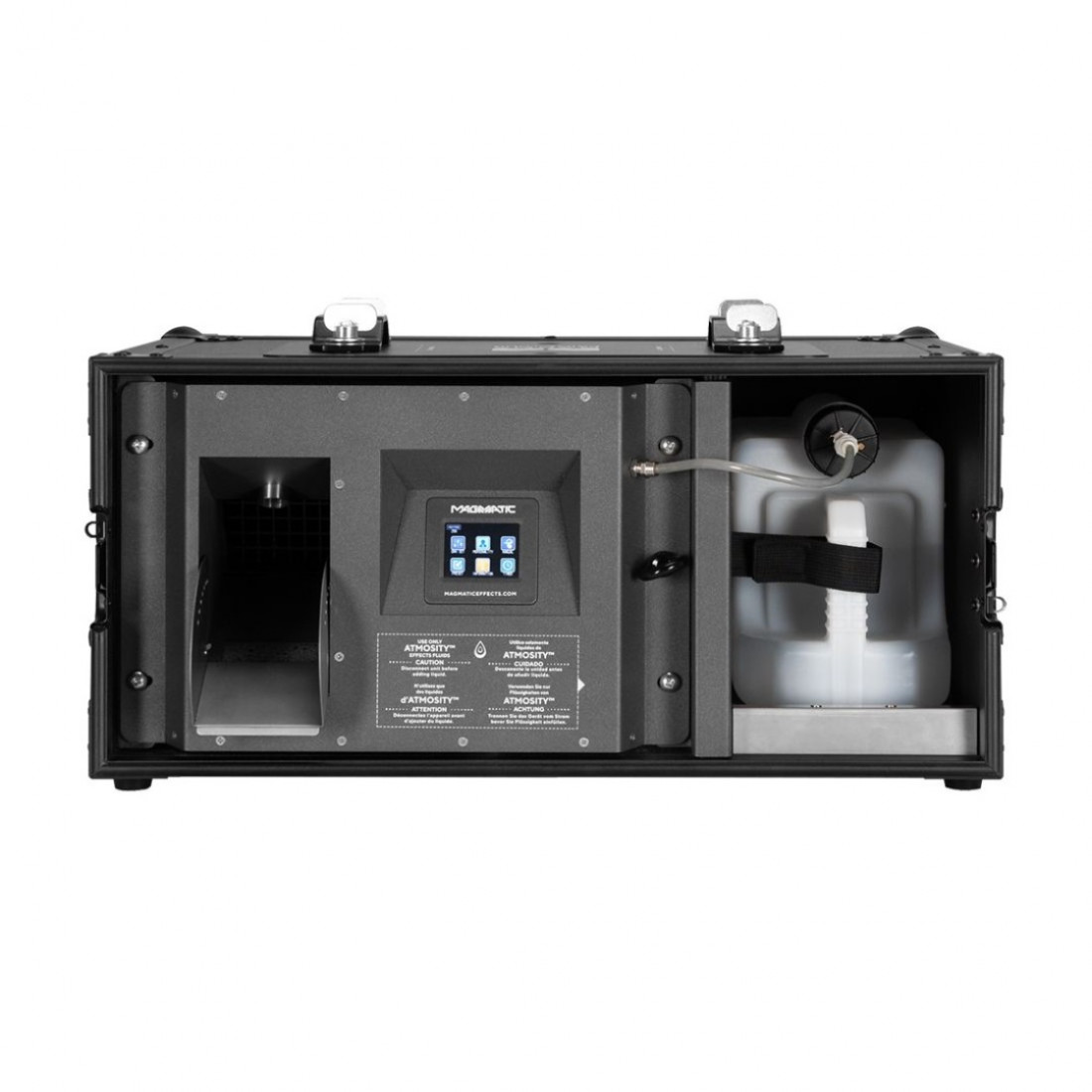

A convenient sleep mode, accessible via DMX, powers down the heater, air pump, and fan, avoiding the need to unplug the unit. The 35-second heat-up time minimizes latency when coming out of sleep mode. The unit is equipped with a user-friendly Full Color LCD touchscreen, intuitive DMX-512 and RDM control, a rugged road case with all wiring neatly located on the back, and optional wired and wireless remote control options for added flexibility.
ТЕХНИЧЕСКИЕ ДАННЫЕ
SPECIFICATIONS
Rated Power: 1500WHeater Power: 1350W
Over-Voltage Protection (OVP)*
DMX-Activated Sleep Mode
Max Output: 18,000 CFM* (cubic feet per minute)
Ready Time: Initial = 60 Seconds*
Fluid Capacity: 1.48 gallons (5.6 liters)
Fluid Consumption: ~0.338 oz/min (10 ml/min)*
*Values are approximate
COMPATIBLE FLUID
Atmosity Extreme Filtered Fog Fluid (AEF), available in 2, 4 or 20 litre containers
CONSTRUCTION

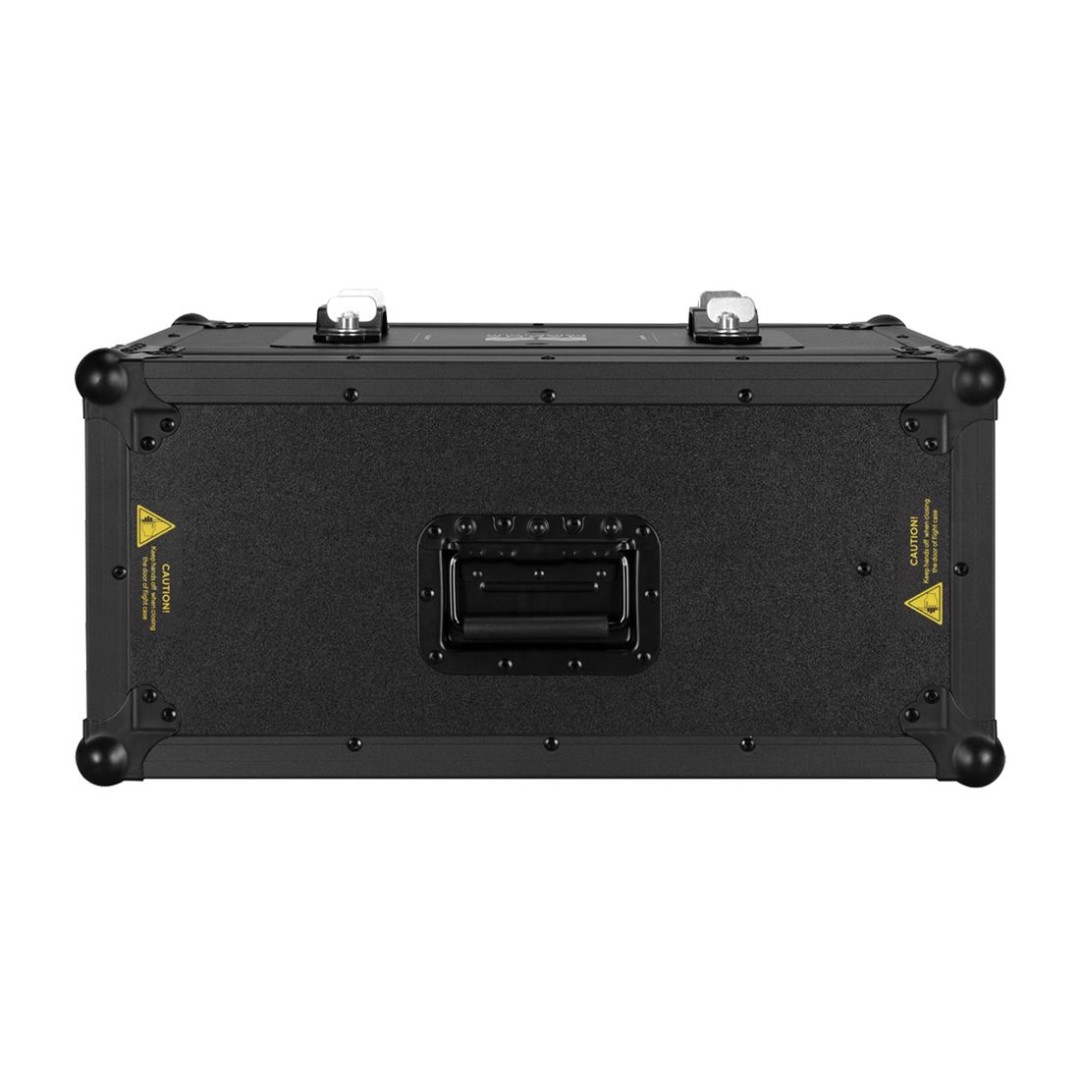

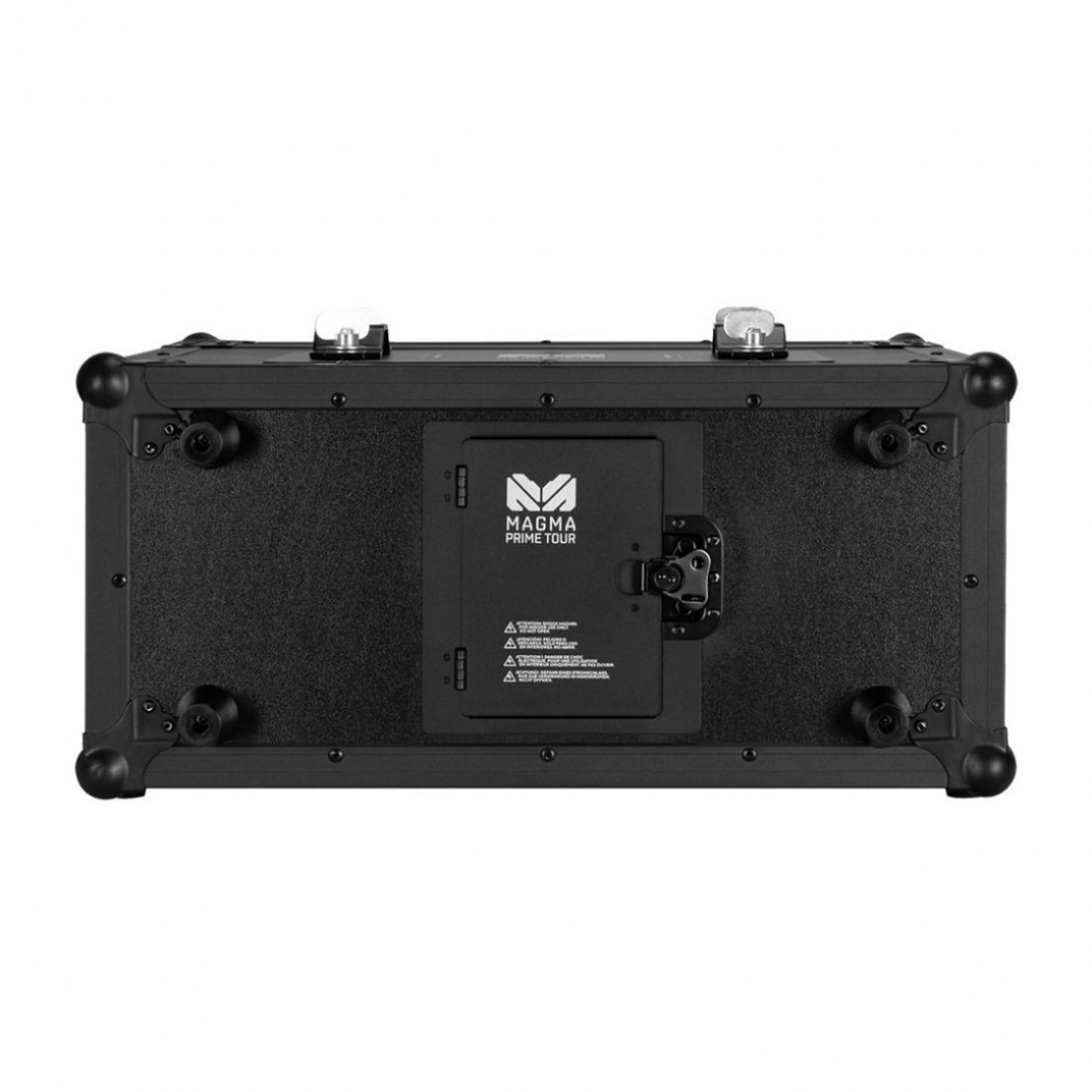

Thermally Protected Heat ExchangerTour Ready Road Case w/ Handle

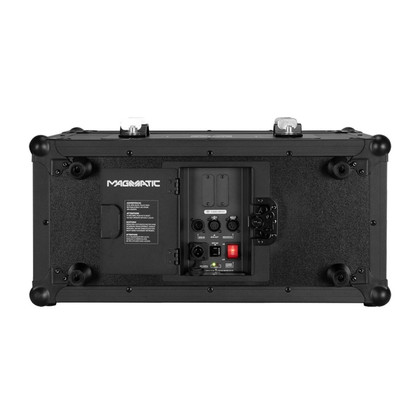

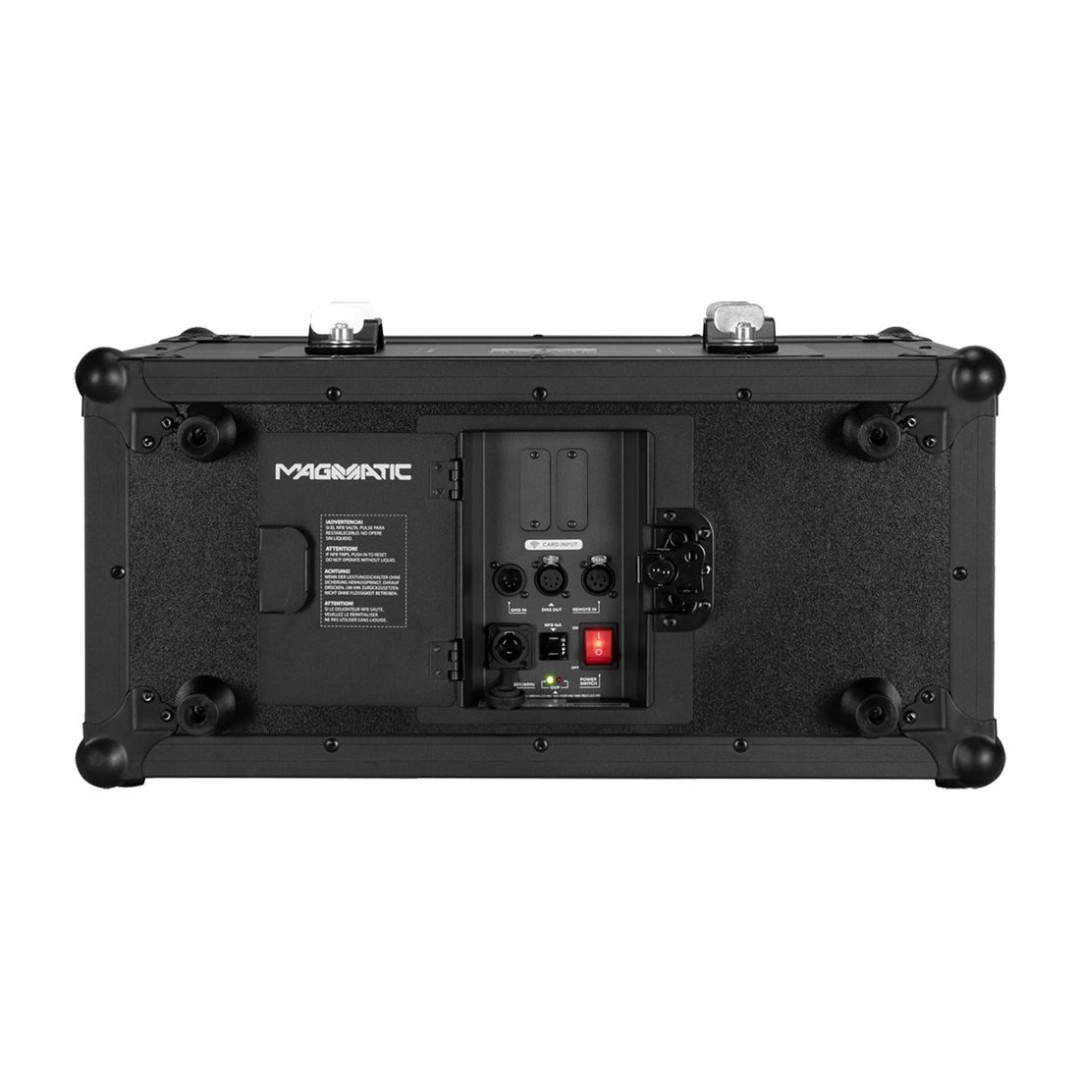

Rear Wiring for a Clean Setup
CONTROL
5 DMX Channel Modes (1 / 2/ 3 / 5/ 6)Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector In/OutLocking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 619mm (24.4 in.)Width: 304mm (12.0 in.)
Height: 521mm (20.5 in.)
Weight: 31.5kg (69.5 lbs.)
ELECTRICAL
AC 230V 50Hz10A @ 230VAC - 240VAC
Max Power Consumption: 1500W
THERMAL
Maximum Ambient Temperature (Ta max): 40°C (104°F)Exterior Surface Temperature, Steady State: 50°C (122°F)
OPTIONAL ACCESSORIES
Atmosity Extreme Filtered Fog Fluid (AEF), available in 2, 4 or 20 litre containers
MagFLY Card
MagRF Card
MagRemote VIDI
